Austin Healey Carburetter Adjustment Checks for Overheating Diagnosis

Not every hot-running Austin Healey is asking for a radiator, fan kit or water pump. The carburetters, inlet gaskets and manifold sealing can all play their part, especially when the car still runs hot after the obvious cooling checks have been made.

If the inlet side draws in air where it should not, the mixture can become weak. A weak mixture can raise running temperature and make the engine feel less settled. If the carburetters are set too rich, that brings its own trouble, including bore wash, reduced lubrication and extra heat over time. Very generous of the carburetters to offer both directions of inconvenience.

Check the carburetter side alongside the main Austin Healey cooling guide, especially if the radiator, hoses, coolant, thermostat, fan setup and ignition timing all look sensible but the car still runs hotter than expected. Settings and adjustment procedures vary by carburetter type, engine specification and previous modifications, so always work from the correct workshop manual data.

• Check for inlet air leaks: deteriorated gaskets can allow extra air into the inlet side and create a weak mixture.
• Check carburetter settings: too weak can contribute to overheating, while too rich can cause bore wash and lubrication problems.
• Inspect manifold sealing: exhaust manifold leaks can release hot gases into the engine bay and increase under-bonnet temperature.
• Inspect throttle shafts: worn butterfly throttle shafts can allow extra air into the mixture and make the engine run hotter.
• Use the right information: refer to the correct workshop manual settings and procedure for the carburetter type fitted.

Why carburetter setup can affect hot running

Carburetters control how fuel and air are delivered to the engine. When the mixture is wrong, the engine can still run, but it may run hotter, rougher or less efficiently than it should. That makes cooling diagnosis much harder, because the temperature gauge points at the radiator while the real trouble may be hiding on the inlet side.

Inlet air leaks can create a weak mixture

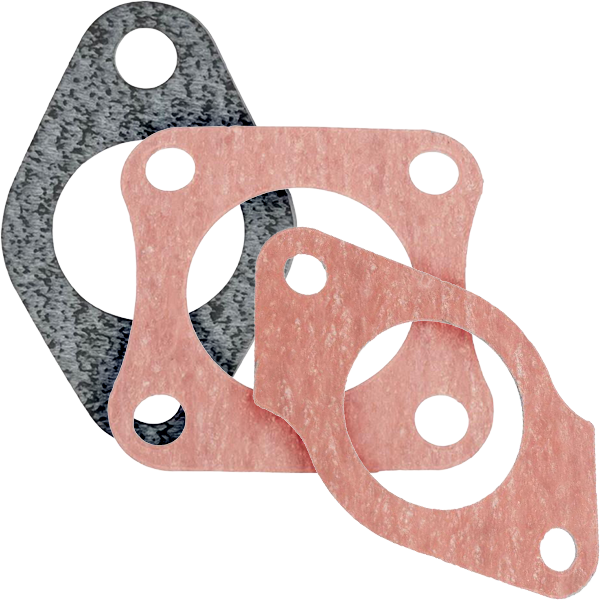

The gaskets between the carburetter and inlet manifold, and between the inlet manifold and cylinder head, must seal properly. If these gaskets deteriorate, the running engine can draw in unwanted air. That extra air alters the mixture and can make it too weak, which can lead to hot running.

Worn carburetters can have the same effect, especially around the butterfly throttle shafts. If the shafts are worn, they can let additional air into the intake mixture. That can make the engine run hotter even when the cooling system itself is not the main fault.

Too rich can also cause damage and heat

A weak mixture is a known hot-running cause, but a rich mixture should not be ignored either. If too much petrol enters the combustion chamber, not all of it can be fully burnt during combustion.

Excess petrol can remain in the cylinder and wash oil from the bore on the downward stroke. This bore wash reduces lubrication, increases heat and, over time, can accelerate piston and bore wear. It can also dilute the oil in the sump, which is another fine way of making a simple diagnosis less simple.

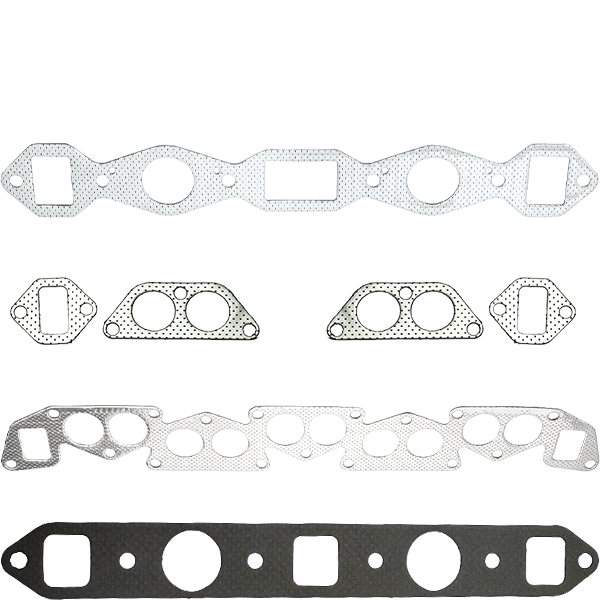

Exhaust manifold leaks add heat where you do not want it

If the gasket between the exhaust manifold and cylinder head deteriorates, hot gases can escape into the engine bay. That can raise under-bonnet temperature significantly, adding heat around the engine, carburetters, fuel lines and cooling system.

Before replacing major cooling parts, inspect the carburetter, inlet and exhaust sealing carefully. A sound cooling system can only do so much if the engine setup is adding heat from the other side of the argument.

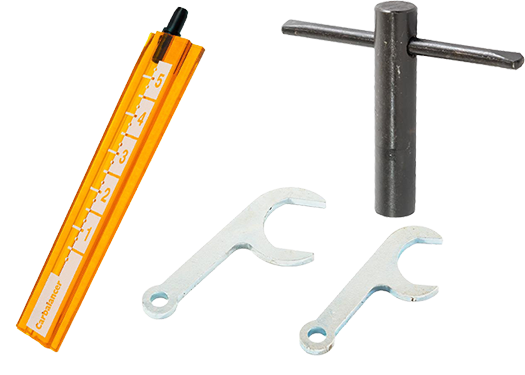

Use the correct tools and settings

Carburetter adjustment should be done using the correct workshop manual procedure for the car and carburetter type. Guesswork can move the problem rather than solve it, and the engine will usually notice long before it sends a polite letter.

Useful tools can help with carburetter balancing, jet, needle and seat work, but the settings still need to match the carburetter, engine specification and wider condition of the car. If the carburetters are worn, especially around the throttle shafts, adjustment alone may not hold the answer.

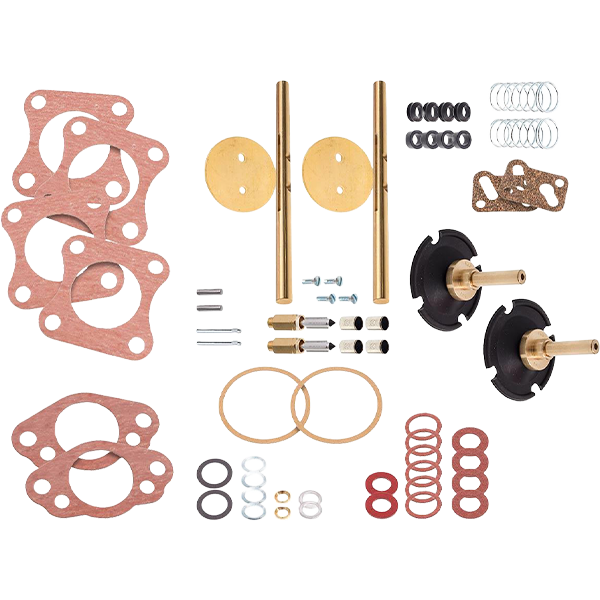

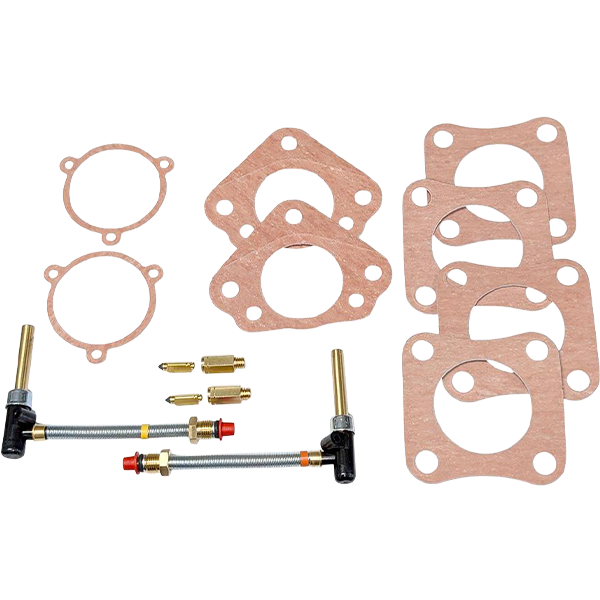

Gaskets and carburetter parts to check

If the carburetters are incorrectly set, worn or drawing in unwanted air, the engine can run hotter than expected. The aim is not to replace everything in sight. The aim is to find the parts that are actually letting the engine run weak, rich, inconsistent or hotter than it should.

Check gasket condition, manifold sealing, carburetter wear and service condition before blaming a major cooling component. A perished gasket can be a surprisingly small part with a surprisingly irritating effect. Classic cars do like to keep a sense of proportion, usually by ignoring it.

Note: Carburetter type, manifold arrangement and previous modifications can change what is needed. Check the correct Big Healey, Sprite or MG Midget carburetter parts for the car before ordering, especially where the carburetters or manifolds have been changed previously.

Carburetter and manifold checks are especially useful when the car still runs hot after the obvious cooling and ignition checks have been made. If coolant level, radiator airflow, thermostat operation, fan belt condition, visible leaks and ignition timing all look sensible, the inlet, exhaust and carburetter setup deserve proper attention.

Check the carburetters after recommissioning, carburetter work, manifold work, gasket replacement, overheating complaints, poor idle, hesitation, fuel smell or any job where the running has changed. If adjustment does not hold, inspect for wear or air leaks rather than chasing the settings around in circles. That way lies madness, and usually a cup of cold tea.

• Traffic heat remains: check low-speed airflow, then carburetter setting and inlet leaks if the cooling basics look sound.
• Hot running at speed remains: check radiator efficiency and coolant circulation, then confirm the mixture is not weak.
• Engine feels flat or unsettled: weak mixture, air leaks or worn throttle shafts can make the engine run hotter than it should.
• Fuel smell or rich running: check for over-rich settings that could cause bore wash and oil dilution.
• Recent manifold or carburetter work: confirm gasket sealing, manifold sealing and correct settings before assuming a new cooling fault has appeared.

Check Carburetter Parts

Useful cooling checks while you are there

Carburetter setup is only one part of overheating diagnosis. Before calling the job done, check radiator efficiency, coolant circulation, hose condition, coolant, thermostat operation, fan setup, ignition timing and engine oil grade too. It is less glamorous than blaming one part immediately, but it does tend to save time.
