Austin Healey Ignition Timing Checks for Overheating Diagnosis

Not every hot-running Austin Healey is suffering from a cooling system fault. A restricted radiator, tired hose, weak fan or poor coolant circulation can certainly cause trouble, but ignition timing and ignition condition also deserve a proper look during overheating diagnosis.

Too much ignition advance and over-retarded timing can both add heat, just in different ways. Advanced timing can ignite the charge too early, raising pressure and heat while the piston is still trying to do its job. Retarded timing can push heat later into the cycle, wasting it into the exhaust port and surrounding metalwork. Neither is especially helpful, which is very on-brand for an old ignition fault.

Check the ignition side alongside the main Austin Healey cooling guide, especially if the radiator, hoses, coolant, thermostat and fan setup all look sensible but the car still runs hotter than expected. Timing figures vary by engine, distributor, specification and previous modifications, so always work from the correct workshop data for the car rather than borrowing a number from a different setup.

• Check timing first: confirm the ignition timing using the correct workshop manual procedure for the car.
• Check both advance and retard issues: too much advance and over-retarded timing can both contribute to overheating.
• Check advance behaviour: a timing light with advance feature helps confirm what is happening as engine speed changes.
• Inspect the distributor: worn distributor components can make timing difficult to set accurately.

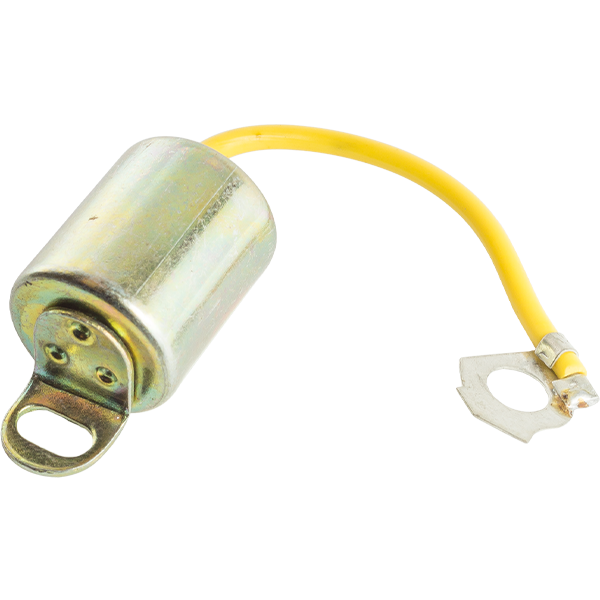

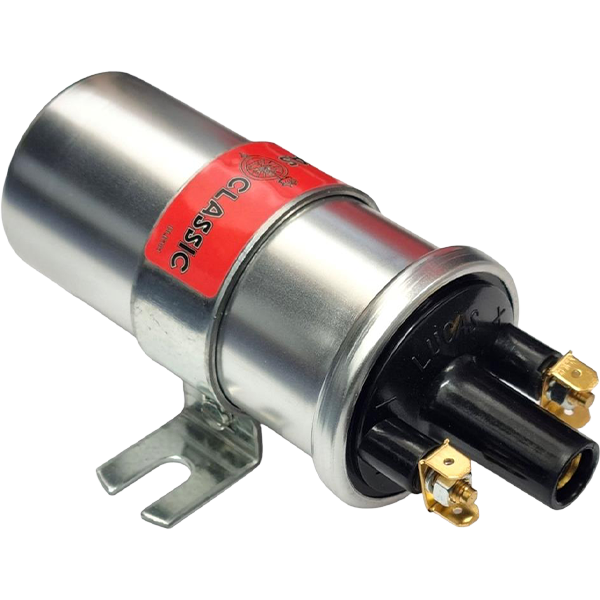

• Inspect ignition service parts: plugs, rotor arm, distributor cap, contact set, condenser, leads, plug caps and coil condition can all affect running quality.
• Diagnose before replacing: overheating may still be caused by radiator efficiency, coolant circulation, thermostat operation, fan belt condition or coolant issues.

Why ignition timing can affect hot running

Ignition timing controls when the spark occurs in relation to piston movement. When the timing is wrong, the engine may still run, but it may not burn the mixture efficiently. That can mean less useful power, more heat, rougher running and a cooling system that has to work harder than it should.

Too much advance can create heat and pressure too early

When timing is too advanced, the fuel-air charge is ignited too early. Pressure and heat rise rapidly while the piston is still moving in a way that does not suit that early combustion event. Instead of useful power, more heat can be forced into the cylinder head, pistons and cylinder walls.

Excessive advance can also lead to ignition knock. Knock causes a very rapid rise in heat and pressure, and that is not something an Austin Healey cooling system will thank you for. Nor will the engine, for that matter.

Over-retarded timing can waste heat into the exhaust

When timing is too retarded, combustion happens later in the cycle. Instead of the heat being used efficiently, more of it is wasted out through the exhaust port, with some also transferred into the head and cylinder walls.

In severe cases, retarded timing may show as a glowing exhaust at idle. That is not a party trick. It is the engine asking for the ignition setting to be checked properly.

Distributor wear can make timing difficult to set

If the timing is difficult to set correctly, do not assume the timing marks or your patience are the only suspects. Worn distributor components can make accurate timing difficult or inconsistent. Depending on what is fitted, the answer may be new distributor parts where available, or a replacement distributor if the existing unit is too worn.

Always refer to the workshop manual for the correct procedure when checking and setting ignition timing. Timing settings vary by engine, distributor, specification and previous modifications.

Use a timing light to check the ignition setting

A timing light lets you check the ignition timing against the correct reference marks and workshop data for the car. This matters because both excessive advance and over-retarded timing can contribute to overheating, poor running and difficult diagnosis.

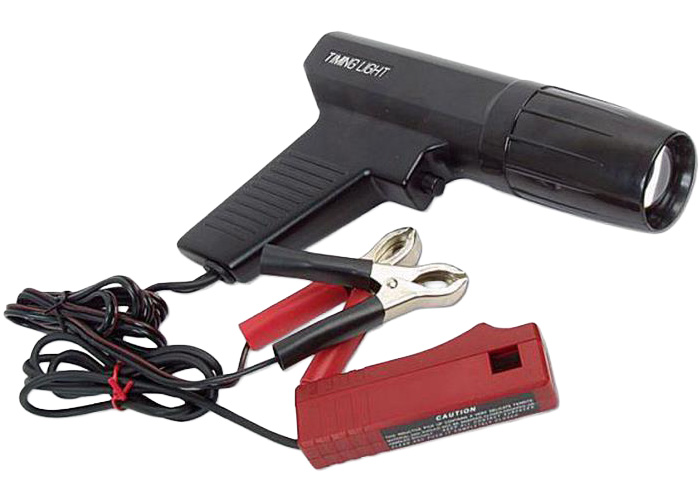

The Gunson Timing Light with advance feature is designed to help synchronise the ignition system with piston movement. The inductive pick-up avoids the need to disconnect the spark plug wire to operate the light, and the advance feature helps with timing checks beyond a simple static setting.

Use the correct workshop manual data for the car, then check whether the timing remains stable and behaves as expected. If it will not set correctly, the distributor may need closer inspection for wear before the cooling system takes the blame again.

Ignition parts to check after timing

If the timing setting is correct but the car still runs poorly or hotter than expected, inspect the wider ignition system. The aim is not to replace everything for sport. The aim is to find tired parts that could be causing weak, inconsistent or poorly controlled ignition.

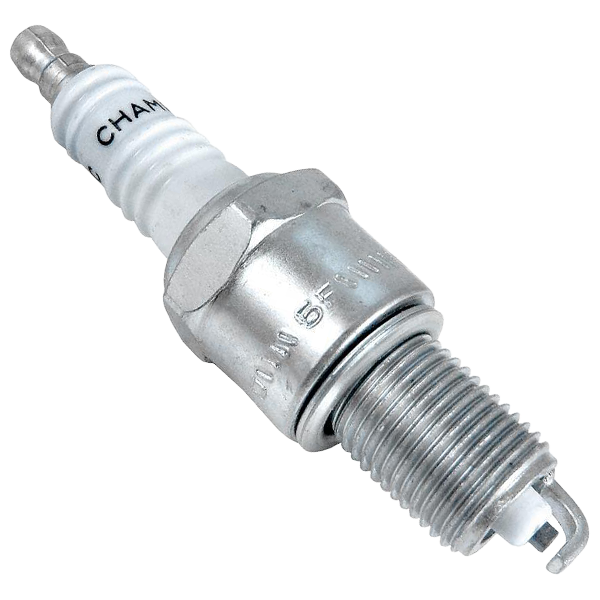

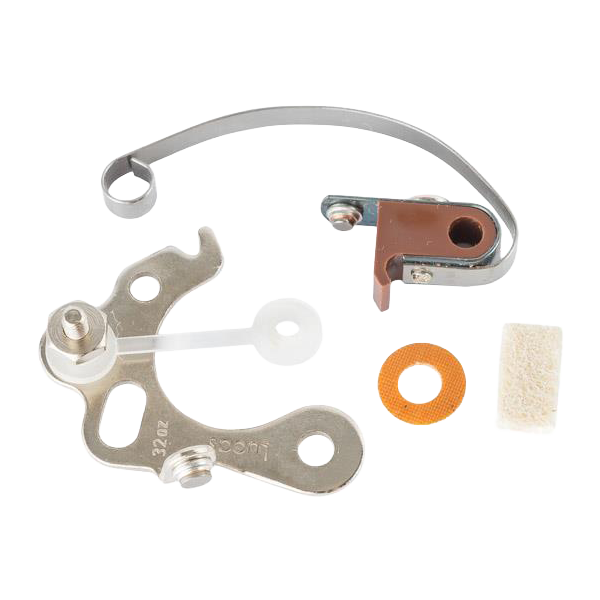

The contact set should open and close at the correct point, with the faces of the points sitting square to each other. Spark plugs need to be the correct grade with the correct plug gap, as a gap that is too large or too small can add to hot-running issues.

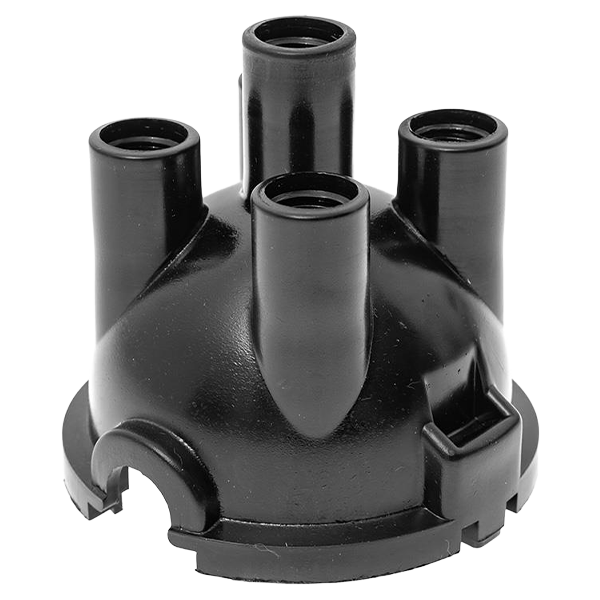

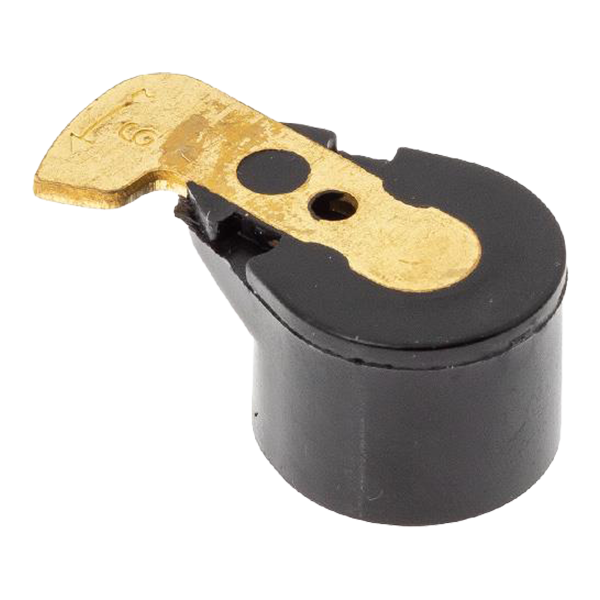

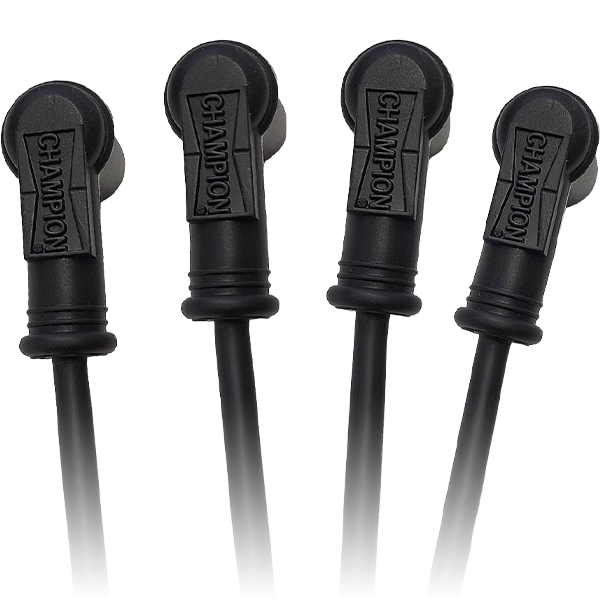

Ignition leads and plug caps also deserve a careful look. If they are tracking out, they can sometimes cause a barely noticeable misfire that still adds to overheating issues. Check the distributor cap and rotor arm for wear, damage, black soot marks or poor contact areas.

Note: Specific part numbers vary by model, ignition setup and previous modifications. Check the correct Big Healey, Sprite or MG Midget ignition parts for your car before ordering, especially where the distributor or ignition system has been changed previously.

Ignition checks are especially useful when the car still runs hot after the obvious cooling checks have been made. If coolant level, radiator airflow, thermostat operation, fan belt condition and visible leaks all look sensible, the ignition system becomes one of the next areas to investigate.

Timing is worth checking after distributor work, points replacement, engine recommissioning, carburettor adjustment, overheating complaints or any job where the running has changed. If the timing is difficult to set, inspect the distributor for wear rather than forcing an adjustment and hoping it behaves. Hope is not a setting in the workshop manual.

• Traffic heat remains: check low-speed airflow, then ignition timing and condition if the cooling basics look sound.
• Hot running at speed remains: check radiator efficiency and coolant circulation, then confirm the timing is not too advanced or over-retarded.
• Engine feels flat or laboured: poor timing, weak ignition or a subtle misfire can make the engine work harder than it should.
• Timing will not set cleanly: inspect the distributor for worn components before assuming the timing marks are the problem.
• Recent ignition work: confirm the timing, plug gap, points setting and component condition before assuming a new cooling fault has appeared.

Check Ignition Timing

Useful cooling checks while you are there

Ignition timing is only one part of overheating diagnosis. Before calling the job done, check radiator efficiency, coolant circulation, hose condition, coolant, thermostat operation and fan setup too. It is less glamorous than blaming one part immediately, but it does tend to save time.
