Austin Healey Aluminium Radiators for Cooling

If your Austin Healey runs warm at road speed, loses cooling confidence on longer climbs, or has a radiator with a history best described as “character building”, radiator efficiency deserves proper attention. Revotec fan kits help in traffic, but once the car is moving, the radiator still has to shed the heat.

Aluminium radiator information covers Big Healey, Sprite and MG Midget applications for summer preparation, restoration work and repeated hot-running diagnosis. Choose by model range and radiator layout, then check the existing setup before ordering, especially if the car has been modified during a previous rebuild. Classic cars do like to keep paperwork and reality just far enough apart to be interesting.

Currently unavailable: CHT102C remains listed to confirm the correct radiator application and technical details for BN4.68960-BJ8 models.

• Running hot at speed: check radiator efficiency, coolant circulation, thermostat operation, fan belt condition and coolant condition.
• Big Healey aluminium applications: CHT101C covers BN1-BN2, while CHT102C is the radiator application for BN4.68960-BJ8.
• Sprite and MG Midget alloy options: choose by vertical-flow or cross-flow radiator layout.
• Best paired with sound service parts: inspect the cap, hoses, clips, thermostat and coolant while the radiator is being replaced.
• Useful for restoration and touring: an aluminium radiator is a practical route when the existing radiator is tired, restricted, leaking or repeatedly repaired.

Choose the correct aluminium radiator

Start with the model range, then confirm the radiator layout fitted to the car. Big Healey applications are shown for BN1-BN2 and BN4.68960-BJ8, although availability currently varies between the two radiator options. Sprite and MG Midget owners should confirm whether the car uses a vertical-flow or cross-flow radiator before ordering.

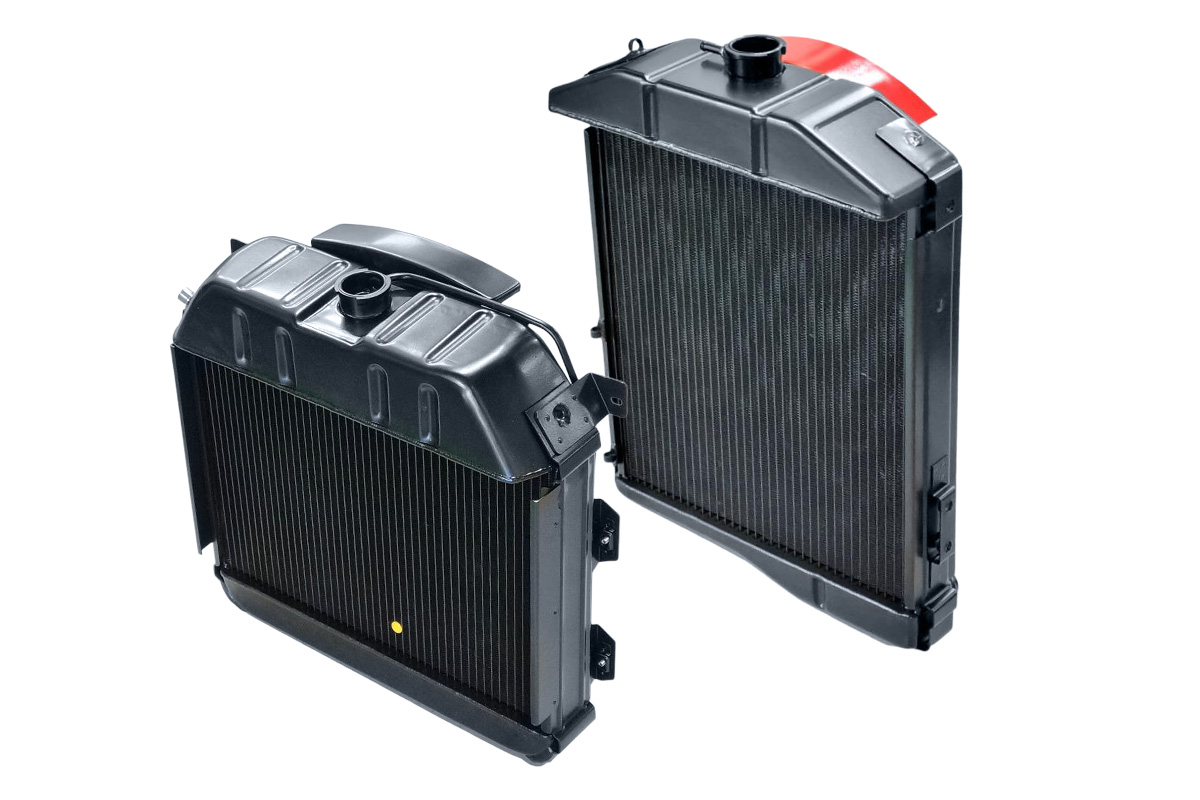

Big Healey aluminium radiators

Sprite & MG Midget alloy radiators

The key question is when the temperature rises. If the car gets hot in traffic but settles down once moving, start with airflow and fan operation. If it runs hot at road speed as well, the radiator, coolant circulation, thermostat operation, fan belt condition and coolant condition all deserve a closer look.

Radiators do not last forever, even when the outside still looks passable. Old cores can become restricted internally, fins can lose efficiency, and repeated repairs can turn a cooling system into a historical document. Interesting, perhaps. Not ideal on a hot A-road.

• Good candidate: runs warm at speed, struggles on long climbs or has a tired, leaking or heavily repaired radiator.
• Check first: coolant level, cap condition, thermostat operation, hose condition, belt tension and radiator fins.
• Look deeper: if overheating continues after radiator work, inspect coolant circulation, water pump condition, fan belt condition and coolant condition.

Back to Austin Healey Cooling Advice

Useful cooling checks while you are there

Replacing the radiator is a good time to deal with the smaller parts that help the system hold pressure, circulate coolant and behave itself when hot. Small parts have a remarkable talent for causing large amounts of bother.

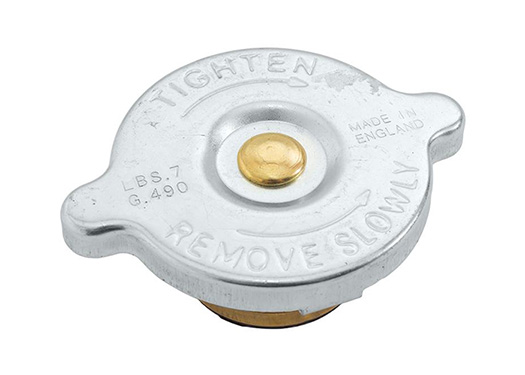

• Radiator cap: check the correct pressure rating and replace tired caps before chasing larger problems.
• Coolant and antifreeze: drain, flush and refill correctly if the coolant history is unknown.
• Hoses and clips: replace cracked, swollen, soft or unknown-age hoses while access is good.
• Thermostat and water pump: inspect flow-control and circulation parts if the car has repeated temperature problems.
