Austin Healey Engine Oil Level and Grade Checks for Overheating Diagnosis

Not every hot-running Austin Healey is suffering from a cooling system fault. A low oil level or incorrect oil grade can add friction, reduce protection and make the engine run hotter than it should, especially when the car is already under load.

Start with the simple check: pull the dipstick and confirm the oil level is correct. Then check the oil type and grade. The factory recommendation was a mineral-based engine oil with a grade of 20W/50, so that should be the reference point when checking what is in the engine.

Check the oil side alongside the main Austin Healey cooling guide, especially if the radiator, hoses, coolant, thermostat, fan setup, ignition timing and carburetter settings all look sensible but the car still runs hotter than expected. Oil is not a magic cure for overheating, sadly. If it were, Healey ownership would be rather too easy.

• Check the dipstick first: confirm the engine oil level before replacing cooling parts.
• Check the grade: the factory recommendation was mineral-based 20W/50 engine oil.
• Check the oil condition: old, diluted or contaminated oil can reduce protection and complicate diagnosis.
• Use running-in oil correctly: running-in oil is for freshly rebuilt engines, following the engine builder’s instructions.
• Diagnose the whole system: oil checks sit alongside radiator efficiency, coolant circulation, thermostat operation, fan setup, ignition timing and carburetter settings.

Why engine oil can affect hot running

Engine oil reduces friction, protects moving parts and helps the engine cope with heat. If the oil level is low, the oil is tired, or the grade is wrong for the engine, the engine can become less well protected and more heat can build where it is least welcome.

Low oil level is the first check

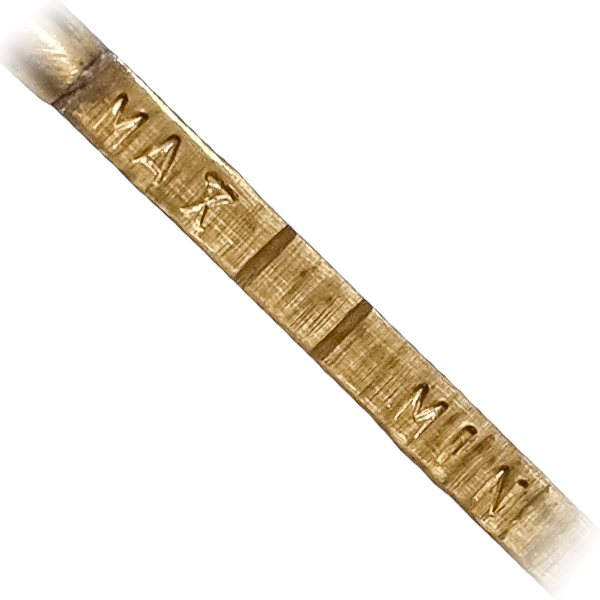

Before blaming the radiator, fan, thermostat or water pump, check the oil level with the dipstick. A low oil level can reduce lubrication and make the engine work harder than it should. It is one of those checks that takes seconds and can save a surprising amount of head-scratching.

The correct oil type and grade matter

The factory recommendation was a mineral-based engine oil with a grade of 20W/50. That matters because classic Austin Healey engines were designed around older oil specifications and operating conditions, not modern low-viscosity oils intended for newer engines.

Using the wrong oil grade can affect oil pressure, lubrication and protection, particularly when the engine is hot or working hard. If the car has unknown service history, checking what oil is in the engine is a sensible part of hot-running diagnosis.

Oil condition can tell its own story

Oil that smells strongly of fuel, appears badly contaminated or has an unknown age should not be ignored. Over-rich carburetter settings can dilute oil over time, while poor service history can leave the engine relying on oil that has done rather more work than it volunteered for.

Fresh, correct oil will not repair a cooling fault, but it does make the diagnosis cleaner. Once the oil level, grade and condition are known, it becomes easier to judge whether the remaining heat problem belongs to the cooling system, ignition, carburetters or another cause.

Engine oil routes to check

Choose the oil route that suits the engine, its condition and the work being carried out. For normal service, start with the correct level and the correct 20W/50 reference point. For rebuilt engines, follow the engine builder’s running-in instructions.

Note: Engine condition, rebuild status, service history and previous modifications can affect the best oil choice. Check the correct oil level, type and grade before ordering, and follow the engine builder’s guidance where a fresh rebuild is involved.

Oil checks are especially useful when the car still runs hot after the obvious cooling, ignition and carburetter checks have been made. If coolant level, radiator airflow, thermostat operation, fan belt condition, visible leaks, ignition timing and carburetter settings all look sensible, confirm the engine is correctly lubricated.

Check the oil level and grade after recommissioning, long storage, an oil change by an unknown previous owner, fuel-rich running, overheating complaints, long-distance touring preparation or any job where the engine’s service history is unclear. “It looked about right when I bought it” is not quite the same as a dipstick reading.

• Traffic heat remains: check low-speed airflow, then confirm the engine oil level is correct.
• Hot running under load remains: check radiator efficiency and coolant circulation, then confirm the oil grade is suitable.
• Unknown service history: check oil level, oil condition and oil grade before assuming the cooling system is the only issue.
• Fuel smell or rich running: consider whether the oil may have been diluted by over-rich mixture or bore wash.
• Fresh engine rebuild: use running-in oil only as instructed by the engine builder.

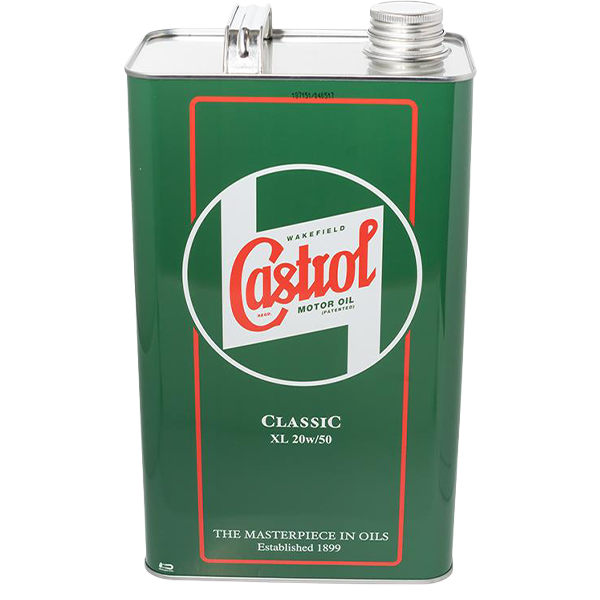

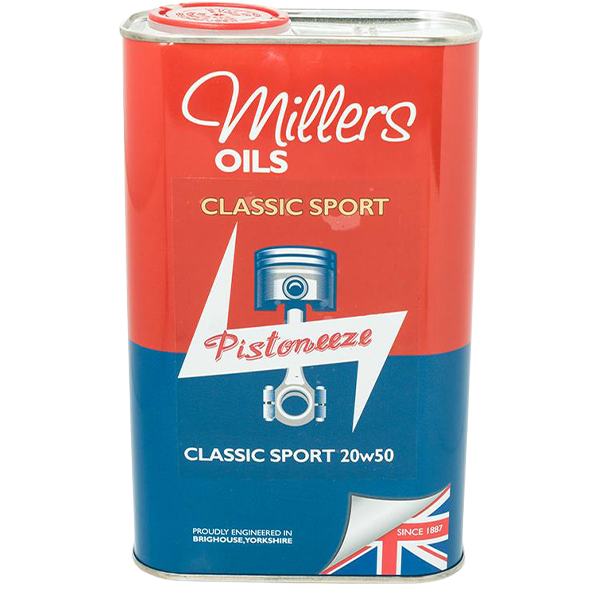

Check Engine Oil Options

Useful cooling checks while you are there

Engine oil is only one part of overheating diagnosis. Before calling the job done, check radiator efficiency, coolant circulation, hose condition, coolant, thermostat operation, fan setup, ignition timing and carburetter setup too. It is less glamorous than blaming one part immediately, but it does tend to save time.
