Big Healey Polybush Kits

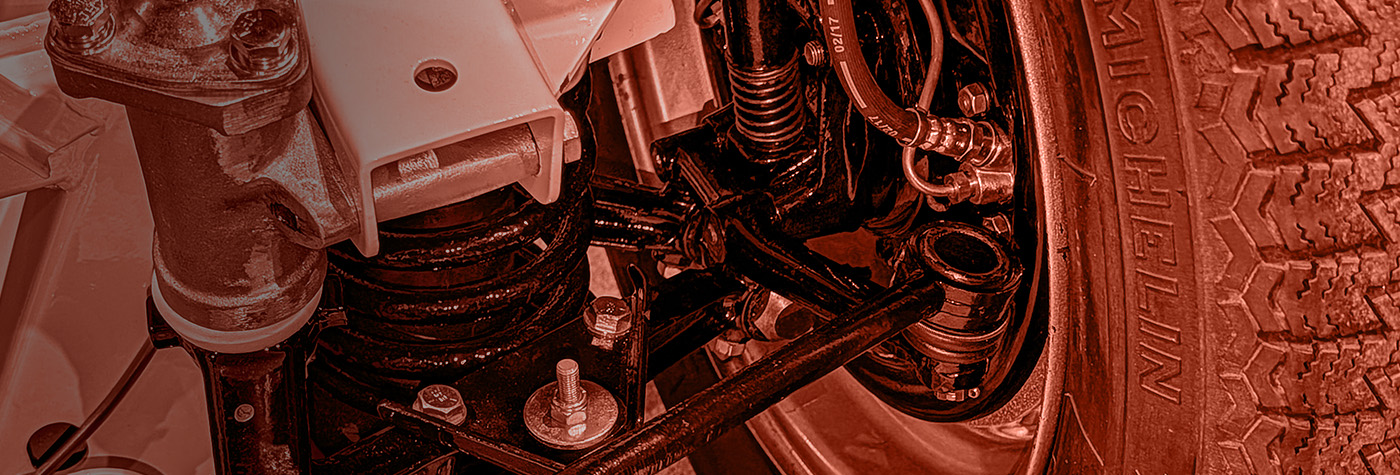

Austin Healey 100 front suspension showing wishbone and suspension bushes

Restore steering feel and suspension control, one area at a time

These Polybush kits cover the Big Healey range (Austin Healey 100, 100-Six, 3000) and include anti-roll bar (A.R.B.) bushes, front wishbone bushes, rear suspension kits, and gearbox tie bar bushes where applicable. Each section below links to the individual kits, with fitment notes to help confirm you are looking at the correct version.

If you are not sure whether your bushes are due, start here: Do Your Suspension Bushes Need Replacing?

Jump to:

Anti-roll bar (A.R.B.) bushes
Front suspension wishbone bushes
Rear suspension kits
Rear axle location (radius arms, panhard rod)
Gearbox tie bar bushes

Touring vs Performance (quick guide): Touring kits use a more compliant compound for road comfort. Performance kits use a firmer compound to reduce compliance and movement. Increased firmness can be noticeable on some cars, especially on rougher roads.

Anti-roll bar (A.R.B.) Polybush kits

Choose the bar diameter first. Big Healey anti-roll bar sizes vary by model and setup. If you are measuring an existing bar, measure the outside diameter. If you are fitting a new bar, use the bar size supplied with that kit.

9/16 inch bar (BN1–BN2)

Fits BN1–BN2 anti-roll bars where a 9/16 inch bar is fitted. Not intended for later BN4–BJ8 bars.

Anti-roll bar Polybush kits for Austin Healey BN1–BN2, 9/16 inch bar
Part Number	Product Name	Click to Buy
SUF210	Austin Healey Anti-roll Bar (A.R.B.) Polybush Kit, 9/16 inch, Touring	View Kit
SUF211	Austin Healey Anti-roll Bar (A.R.B.) Polybush Kit, 9/16 inch, Performance	View Kit

BN4–BJ8 bars (choose diameter)

Fits BN4–BJ8 where the matching bar diameter is fitted. If your car has a non-standard bar, measure the diameter before ordering.

Anti-roll bar Polybush kits for Austin Healey BN4–BJ8 by bar diameter
Part Number	Product Name	Click to Buy
SUF212	Austin Healey Anti-roll Bar (A.R.B.) Polybush Kit, 5/8 inch, Touring	View Kit
SUF213	Austin Healey Anti-roll Bar (A.R.B.) Polybush Kit, 5/8 inch, Performance	View Kit
SUF213A	Austin Healey Anti-roll Bar (A.R.B.) Polybush Kit, 3/4 inch, Touring	View Kit
SUF213B	Austin Healey Anti-roll Bar (A.R.B.) Polybush Kit, 3/4 inch, Performance	View Kit
SUF214	Austin Healey Anti-roll Bar (A.R.B.) Polybush Kit, 7/8 inch, Touring	View Kit
SUF215	Austin Healey Anti-roll Bar (A.R.B.) Polybush Kit, 7/8 inch, Performance	View Kit

Front suspension wishbone Polybush kits

Fits BN1 to BJ8 for the front suspension wishbone assemblies. Does not fit early BN1 models before chassis 221536.

Front suspension wishbone Polybush kits for Austin Healey BN1 (from 221536) to BJ8
Part Number	Product Name	Click to Buy
SUF220	Austin Healey Front Wishbone Polybush Kit, Touring	View Kit
SUF221	Austin Healey Front Wishbone Polybush Kit, Performance	View Kit

Rear suspension Polybush kits

Rear suspension kits are split by chassis break. Early BJ8 is up to BJ8.26704. Late BJ8 is from BJ8.26705 onwards.

Rear suspension Polybush kits for Austin Healey by BJ8 chassis break
Part Number	Product Name	Click to Buy
SUR180	Austin Healey Rear Suspension Polybush Kit, Touring (BN1 to early BJ8)	View Kit
SUR181	Austin Healey Rear Suspension Polybush Kit, Performance (BN1 to early BJ8)	View Kit
SUR182	Austin Healey Rear Suspension Polybush Kit, Touring (late BJ8)	View Kit
SUR183	Austin Healey Rear Suspension Polybush Kit, Performance (late BJ8)	View Kit

Rear axle location kits (radius arms, panhard rod)

These kits focus on axle location rather than spring control. Radius arm kits fit late BJ8 from BJ8.26705 onwards. Panhard rod kits fit BN1 to early BJ8 up to BJ8.26704 (and suit both standard and uprated panhard rods where fitted).

Rear axle location Polybush kits for Austin Healey, radius arms and panhard rod
Part Number	Product Name	Click to Buy
SUR166B	Austin Healey BJ8 Radius Arm Polybush Kit, Touring (late BJ8)	View Kit
SUR166R	Austin Healey BJ8 Radius Arm Polybush Kit, Performance (late BJ8)	View Kit
SUR179	Austin Healey Panhard Rod Polybush Kit, Touring (BN1 to early BJ8)	View Kit
SUR179R	Austin Healey Panhard Rod Polybush Kit, Performance (BN1 to early BJ8)	View Kit

Gearbox tie bar Polybush kits

These kits are for the gearbox rear tie bar and tie bar pin. They are used across side-change and centre-change applications where a gearbox tie bar is fitted. Increased firmness can reduce unwanted movement, but may transmit more drivetrain feel compared with softer bushes.

Gearbox tie bar Polybush kits for Austin Healey
Part Number	Product Name	Click to Buy
GBS253R	Austin Healey Gearbox Tie Bar Polybush Kit, Performance	View Kit
GBS256P	Austin Healey Gearbox Tie Bar Pin Polybush Kit, Touring	View Kit

← Back to Polybush kits hub

FAQs

Which Big Healey models do these Polybush kits cover?

The kits listed cover the Big Healey range, including Austin Healey 100, 100-Six, and 3000 models. Individual products may have chassis breaks, which are stated on each kit page.

How do I choose the correct anti-roll bar bush kit?

Choose by bar diameter. Measure the outside diameter of the anti-roll bar you have fitted, or match the kit to the bar size supplied with your anti-roll bar kit.

What is the early and late BJ8 chassis break used on this page?

Rear suspension kits are split at BJ8.26704. Early BJ8 is up to BJ8.26704, and late BJ8 is from BJ8.26705 onwards.

Do the front wishbone Polybush kits fit all BN1 cars?

No. The wishbone kits do not fit early BN1 models before chassis 221536. BN1 cars from chassis 221536 onward are included in the fitment range shown on the product pages.

Will Touring or Performance be better for road use?

Touring is generally the better starting point for road comfort and compliance. Performance is firmer and reduces movement further, but increased firmness can be noticeable on rough surfaces.

Are gearbox tie bar Polybush kits included for all Big Healeys?

No. The gearbox items are specifically for gearboxes fitted with a rear tie bar arrangement. Check the product page fitment notes for side-change and centre-change applications.
