Austin Healey Cooling System Overhaul

Austin Healey driving comfortably in hot weather after cooling system preparation

Build the cooling system for the way you drive

A proper cooling overhaul is not a quick Saturday morning tweak. It usually belongs with a refit, recommissioning, partial rebuild, full restoration, rally-style preparation or a car being set up for regular touring in warmer conditions.

This is where you look beyond the obvious service parts and think about the whole system: coolant circulation, coolant recovery, airflow into the radiator, heat leaving the engine bay, and whether the car’s bodywork or fan setup suits how it will be used. Very sensible. Also the sort of planning best done before fresh paint, final panel alignment and newly fitted hoses make access harder than it needs to be.

  • Core cooling checks: review radiator efficiency, hoses, thermostat, coolant, fan setup and the water pump before adding deeper build parts.
  • CapeSport expansion tank: helps manage coolant expansion and recovery on Big Healey BN1-BJ8 models.
  • Rally radiator air ducting: directs air towards the radiator on Big Healey performance or hotter-climate builds.
  • 5-blade cooling fans: improve mechanical fan airflow while retaining a simple engine-driven setup.
  • Vented panels and trunking details: support serious Big Healey heat management and restoration detail during a planned build.

Choose the right cooling overhaul route

Start with the job in front of you. A standard recommissioning may only need the basics checked properly: radiator efficiency, hoses, thermostat, coolant, fan setup and the water pump. A rebuilt touring car may benefit from the correct radiator route, a Revotec fan and coolant recovery. A hotter-climate or rally-style Big Healey build may justify ducting, 5-blade fans, vented panels and deeper heat-management work.

  • Standard recommissioning: check the core cooling system first before adding major upgrades.
  • Traffic and low-speed heat: consider Revotec fan kits if the car behaves on the open road but struggles when airflow drops.
  • Long-distance touring: review radiator efficiency, coolant choice, hoses, thermostat operation and coolant recovery before the miles begin.
  • Hotter-climate or rally-style use: directed radiator ducting, 5-blade fans and vented panels may make sense once the basics are already sound.
  • Restoration detail: cold air trunking, heater trunking and correct clips are best handled while the car is already apart and access is civilised.

Coolant recovery and directed airflow

Once the basics are sound, deeper builds often move into coolant recovery and directed airflow. That means helping the system manage expansion, getting more air to the radiator, and deciding whether the car needs rally-style preparation rather than asking one small service part to solve the whole problem.

  • CapeSport expansion tank: helps manage coolant expansion and recovery on Big Healey BN1-BJ8 models.
  • Rally radiator ducting: directs air towards the radiator on Big Healey rally, performance or hotter-climate builds.
  • 5-blade cooling fans: improve mechanical fan airflow without changing to an electric fan setup.
  • Still not a cure-all: restricted radiators, poor coolant circulation, weak fan performance and tired service parts still need proper diagnosis.

Airflow, recovery and heat-management parts

These parts are best treated as part of a planned build. They make most sense when radiator efficiency, hoses, coolant, thermostat operation, fan arrangement and coolant circulation are already being reviewed.

Coolant recovery: CapeSport expansion tank

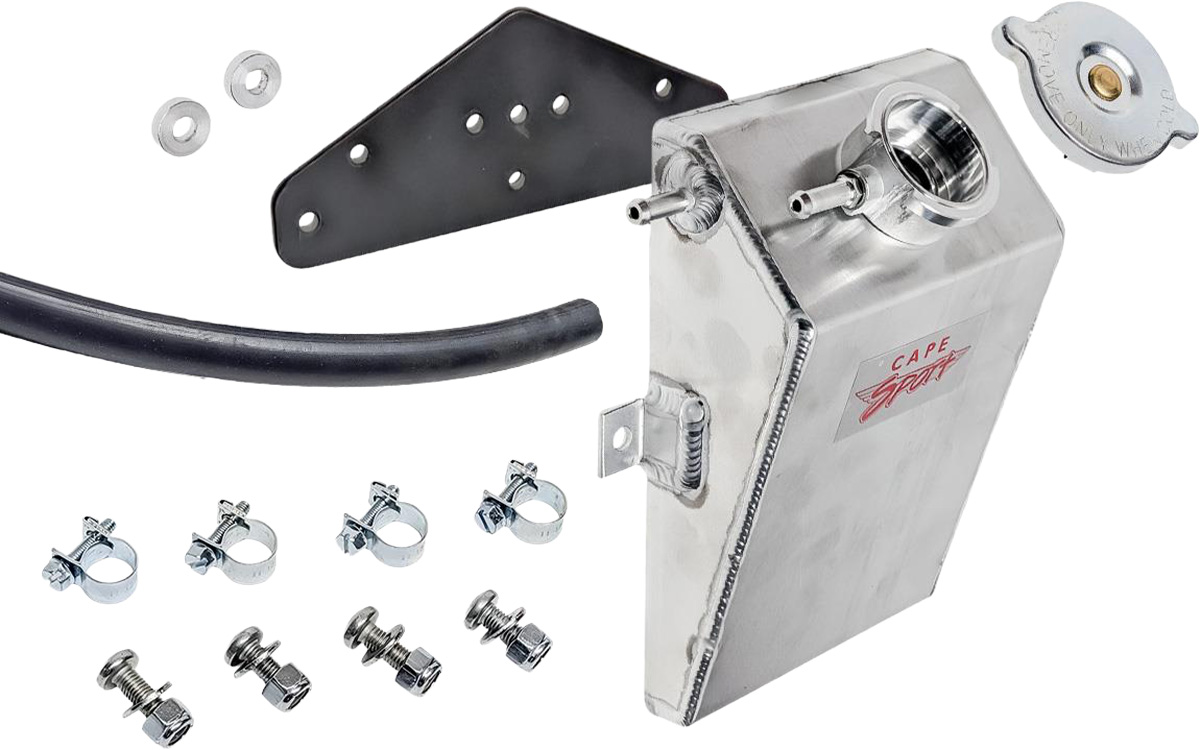

CapeSport Expansion Tank Kit

CapeSport expansion tank kit for Big Healey cooling system overhaul

Application: Big Healey BN1 to BJ8 models

Use this kit when coolant loss after hot running or heat soak is part of the problem. It catches expelled coolant and returns it as the system cools when correctly installed. It is not an overheating cure, which is rude but true.

  • Polished aluminium tank
  • Suitable for RHD and LHD Big Healey models
  • Includes cap, hose, bracket and installation hardware
  • Check clearance carefully on modified cooling systems

Rally radiator air ducting

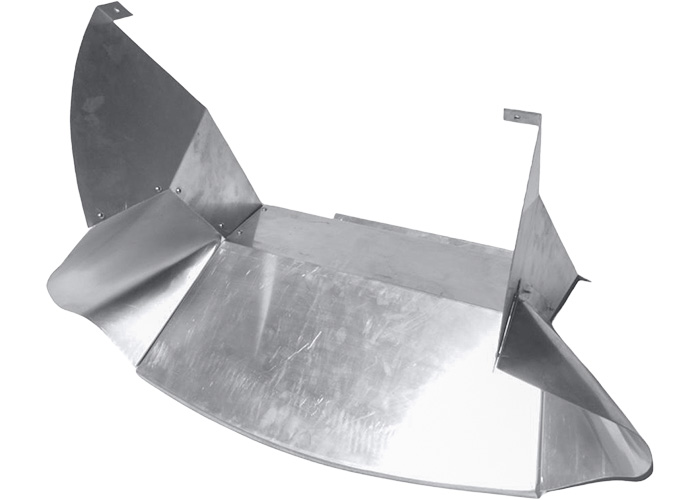

Rally Radiator Air Ducting - Austin Healey 4-Cylinder Engine

Austin Healey 100 BN1-BN2 rally radiator air ducting for directed cooling airflow

Application: BN1 to BN2

Aluminium ducting shaped for the Austin Healey 100 front grilles, helping direct more air into the engine bay for rally, race or hotter-climate use.

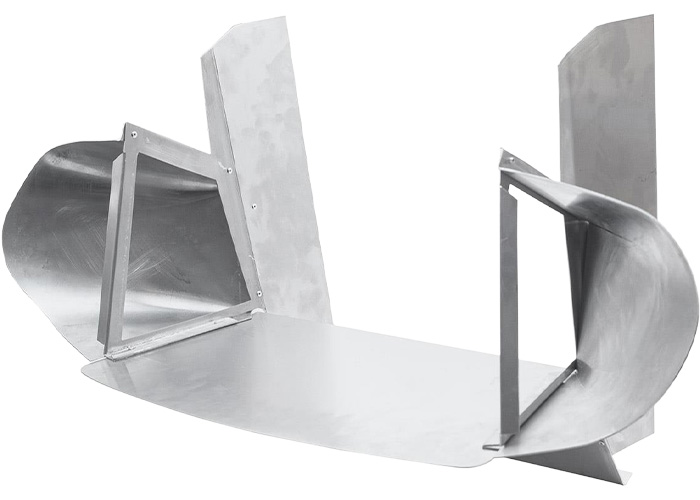

Rally Radiator Air Ducting - Austin Healey 6-Cylinder Engine

Austin Healey 100-Six and 3000 BN4-BJ8 rally radiator air ducting

Application: BN4 to BJ8

Hand-made ducting for 100-Six and 3000 front grilles, designed to direct more air towards the radiator. May require modification when fitted with an electric fan.

5-blade harmonically balanced cooling fans

Austin Healey 100 5-Blade Fan

Austin Healey 100 BN1-BN2 5-blade harmonically balanced cooling fan

Application: BN1 to BN2

A 5-blade harmonically balanced fan for Austin Healey 100 models, made to fit without modifications and designed to reduce noise while increasing airflow.

100/6 & 3000 5-Blade Fan

Austin Healey 100-Six and 3000 BN4-BJ8 5-blade harmonically balanced cooling fan

Application: BN4 to BJ8

A 5-blade harmonically balanced fan for Austin Healey 100/6 and 3000 models, designed to improve airflow and reduce fan noise compared with older designs.

Bodywork-level heat management for serious Big Healey builds

Vented wings and louvered bonnets belong in the serious-build category. They are not quick service parts. They make sense during body restoration, paintwork, rally-style preparation or hotter-climate builds where airflow through and out of the engine bay is part of the plan.

Sprite and MG Midget note: no equivalent vented body panel route is included here for Sprite/MG Midget. Those cars should stay focused on radiator efficiency, fan setup, hoses, coolant, thermostat operation and the correct water pump for the model range.

Big Healey vented wings and louvered bonnet options for cooling overhaul builds

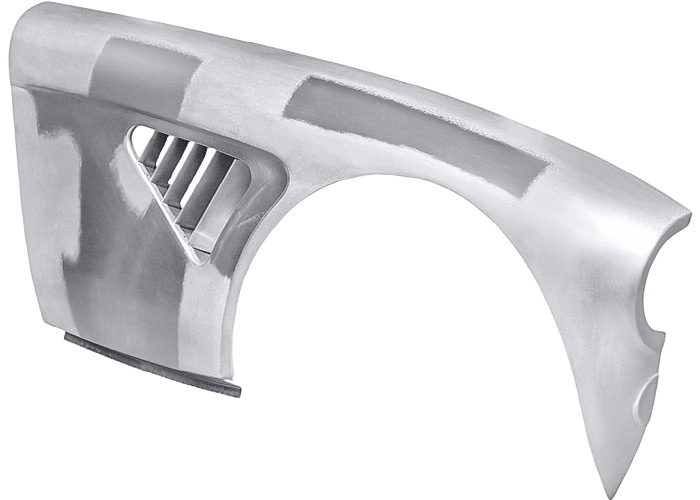

BN4-BJ8 Vented Front Wings

Big Healey BN4-BJ8 vented aluminium front wings for engine bay airflow

Application: BN4 to BJ8

Pressed aluminium front wings with competition-style vents for increased airflow and improved engine cooling on serious Big Healey builds.

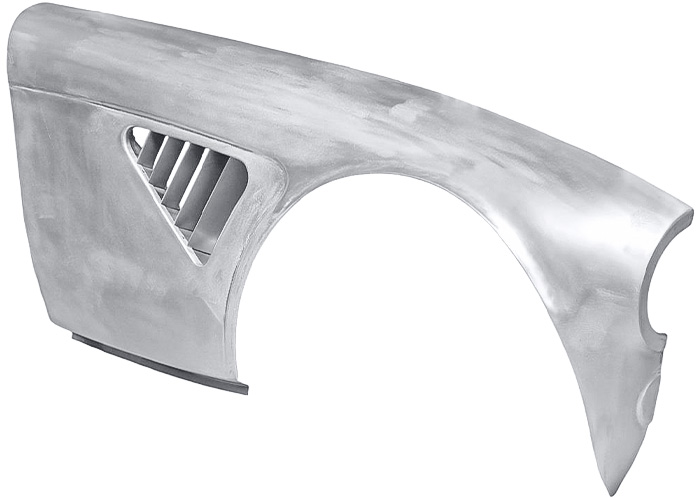

BN4-BJ8 Vented & Flared Wings

Big Healey BN4-BJ8 vented and flared aluminium front wings

Application: BN4 to BJ8

For builds that need both venting and flared wing form. Definitely a bodywork decision, not something to start at 4pm before a Sunday run.

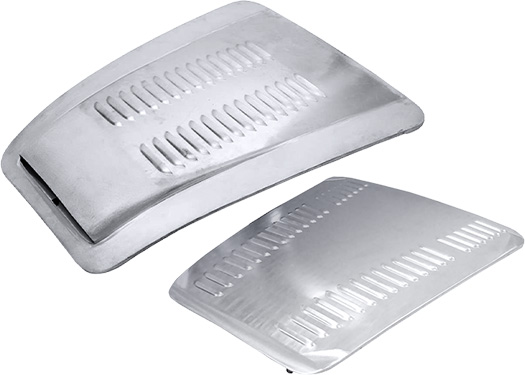

Louvered Aluminium Bonnets

Austin Healey louvered aluminium bonnets for engine bay heat management

Applications: BN1-BN2 100M-style and BN4-BJ8

Louvered bonnets help hot air escape from the engine bay and are best considered during paint, panel alignment or a planned bodywork stage.

Cockpit airflow and O.E.-type trunking detail

Not every cooling-system overhaul is about lowering engine temperature. Cold air trunking helps restore the fresh-air route into the cockpit, while heater trunking and the correct clips help finish the surrounding ducting properly during restoration, refit or engine-bay detailing.

Important fitment note: CHT157 4-inch cold air trunking is for Big Healey BN1-BJ8 models. It is not the correct air duct route for 1098cc-1275cc Sprite and MG Midget cars.

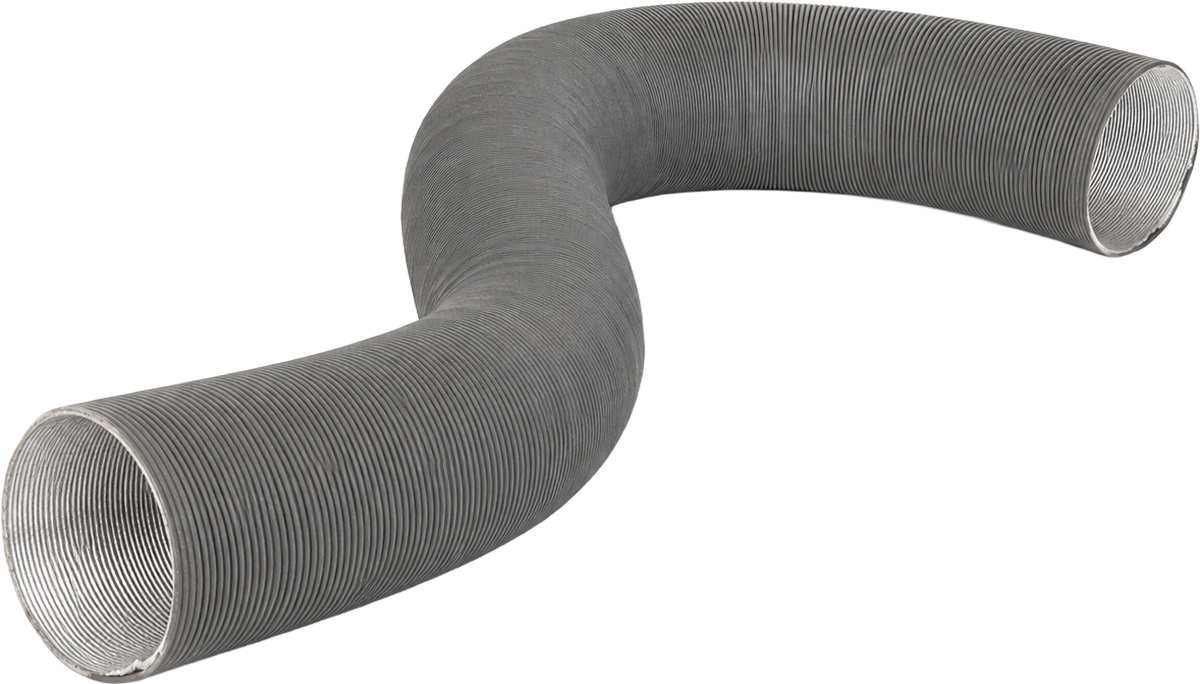

Big Healey Cold Air Trunking

Big Healey O.E.-type 4-inch cold air trunking with charcoal grey ribbed finish

Fits: BN1 to BJ8

Use CHT157 when restoring missing, crushed, tired or incorrect 4-inch cockpit fresh-air trunking on Big Healey models. It uses O.E.-type aluminium/paper wrapped construction with the correct rib detail, inner diameter and charcoal grey finish, helping the fresh-air route look and work as intended.

It will not cool the engine. It will, however, help get fresh air where the factory intended it to go, which is a civilised little victory on a warm day.

Clips and heater trunking are worth checking too

If the old trunking has gone missing or collapsed, the clips may not be far behind. BN4-BJ8 owners should also check the heater trunking if restoring the surrounding ducting. This is the sort of small detail that is easiest to sort before the ducting is neatly fitted and suddenly less enjoyable to reach.

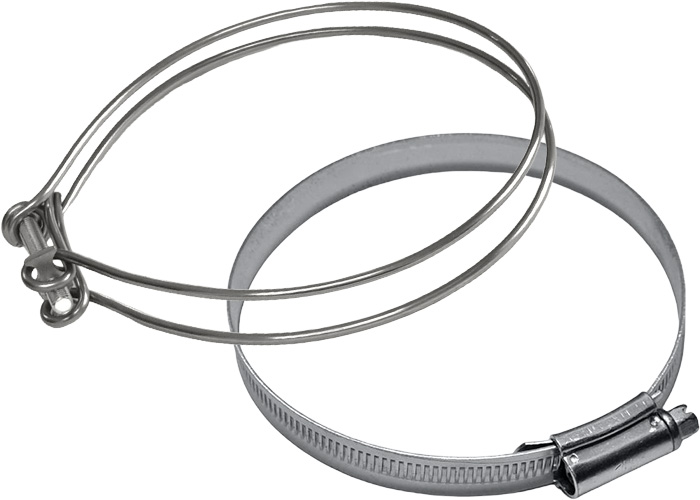

Austin Healey 4-inch trunking clips showing O.E. double wire and Jubilee type options

4-inch O.E. Double Wire Clip

Stainless steel clip with a period-style double-wire appearance, ideal for O.E.-type trunking and a more original-looking engine bay.

View O.E. Clip

4-inch Jubilee Type Clip

A practical 4-inch clip option for securing the trunking where a familiar Jubilee-style clamp is preferred.

View Jubilee Clip

Heater trunking and 948cc air duct detail

BN4-BJ8 Big Healeys use O.E.-type heater trunking, while 948cc Sprite and MG Midget cars use CHT156 as the correct air duct route. The rib detail, inner diameter and charcoal grey finish help the ducting look right while preserving the intended air path, making it a natural companion to the cold air trunking already being replaced.

O.E.-type Austin Healey heater trunking and Sprite air duct showing charcoal grey ribbed finish

BN4-BJ8 Heater Trunking

O.E.-type heater trunking for six-cylinder Big Healey models, available in 3.1/4-inch and 4-inch diameters.

948cc Sprite & MG Midget Air Duct

948cc application using CHT156. This does not apply to 1098cc-1275cc Sprite and MG Midget cars.

View 948cc Air Duct
Austin Healey driving in a hot country after planned cooling system improvements

When a cooling overhaul is the right move

The best time to plan deeper cooling improvements is when the car is already apart: engine out, radiator out, front panels off, cooling system drained, or bodywork being prepared. That is when access is good and decisions can be made in the right order.

Start with the basics first: radiator efficiency, water pump, hoses, thermostat, cap, coolant and fan setup. Then decide whether the car’s intended use justifies ducting, coolant recovery, 5-blade fans, cockpit trunking detail or vented bodywork. Serious build parts work best when the underlying system is already sound. A louvered bonnet, ducting or expansion tank should support a good cooling system, not compensate for a restricted radiator, poor coolant circulation or tired service parts.

  • Good candidate: restoration work, engine-bay refit, recommissioning, touring abroad, rally-style preparation or repeated heat-soak coolant loss.
  • Check first: radiator, water pump, hoses, thermostat, radiator cap, coolant type and fan arrangement.
  • Build deeper: add expansion recovery, rally ducting, 5-blade fan, cockpit trunking detail or vented panels where the car’s use and build stage justify it.

Back to Austin Healey Cooling Advice

Before ordering major overhaul parts, check the cooling system as a whole. Some cars need bodywork-level airflow. Others simply need a radiator that is not quietly restricted, a fan that actually moves air, or hoses that are not made mostly of hope.

Build the cooling system in the right order

A cooling overhaul works best when the basics and upgrades support each other. Radiator efficiency, fan airflow, hoses, coolant, thermostat operation, water pump condition and recovery all play their part. Less dramatic than choosing a louvered bonnet immediately, but usually the better way to build the system.

Austin Healey cooling overhaul related checks including radiator fan hoses and coolant

Aluminium Radiators

Start here if radiator efficiency is part of a hot-running or long-climb diagnosis.

View Radiator Options

Revotec Fan Kits

Start here if the car behaves on the open road but gets hot in traffic.

View Revotec Kits

Cooling Hoses

Replace tired hoses before building pressure and heat into a refreshed system.

View Cooling Hoses

Coolant & Antifreeze

Choose the coolant route before filling the newly refreshed system.

View Coolant Options

Frequently Asked Questions

Are louvered bonnets and vented wings quick cooling fixes?
No. Louvered bonnets and vented wings are bodywork-level heat-management parts, best considered during restoration, paintwork, panel replacement or serious build planning. They are not quick service items.
Can Sprite and MG Midget owners fit vented body panels?
No vented Sprite/MG Midget body panel route is included here. Sprite and MG Midget owners should focus on radiator condition, fan setup, hoses, coolant, thermostat operation, engine tune and the correct water pump for the model range.
Do I need all of these cooling overhaul parts?
No. Choose by the car, the symptoms and the stage of the build. A standard recommissioning may only need radiator, hose, thermostat, coolant, fan and water pump checks. A hotter-climate, rally-style or bodywork-stage Big Healey build may justify expansion recovery, radiator ducting, 5-blade fans, vented panels or trunking detail.
Does cold air trunking help engine cooling?
No. Cold air trunking helps restore cockpit fresh-air routing and engine-bay originality detail. It is useful during restoration and refit work, but it is not an engine overheating cure.
Does the CapeSport expansion tank stop overheating?
No. The CapeSport expansion tank helps manage coolant expansion and recovery on BN4-BJ8 Big Healeys. It does not cure overheating caused by a blocked radiator, poor coolant flow, incorrect timing, faulty cap, head gasket issues or an unsuitable water pump.
Should I fit a 5-blade fan or a Revotec fan kit?
A 5-blade mechanical fan is a simple engine-driven airflow upgrade. A Revotec electric fan kit is better suited to controlled airflow in traffic and low-speed running. The best choice depends on how the car is used and what is already fitted.
Should I start with radiator condition or airflow upgrades?
Start with the symptoms and the condition of the basic system. If the radiator is restricted or leaking, deal with the radiator. If the car behaves on the open road but gets hot in traffic, fan setup becomes more important. Deeper airflow parts should support a sound cooling system, not hide a basic fault.
When are rally radiator air ducts worth fitting?
Rally radiator air ducting is best suited to Big Healey performance, rally-style or hotter-climate builds where more directed airflow to the radiator is part of the plan. It should be fitted as part of a considered build, not as a substitute for a tired radiator or poor tune.
When should I plan a full Austin Healey cooling overhaul?
Plan a cooling overhaul when the car is already being recommissioned, restored, rebuilt or prepared for regular touring, hotter climates or competition-style use. It is also sensible if the cooling history is unknown and several major parts are already being removed.
