Replace Tired Sprite Side/Flasher Lamps | MK2-MK4

Austin Healey Sprite MK2 to MK4 front side and flasher lamps for restoration and road use

Sprite Side/Flasher Lamps | Limited Stock

Sprite side flasher lamps at a glance

Sprite Side/Flasher Lamps at a Glance

What this page covers
Limited-stock front side/flasher lamp assemblies for Austin Healey Sprite MK2, MK3 and MK4 models
Main products
XLTG142 right-hand lamp and XLTG143 left-hand lamp, supplied individually
Fitment
Suitable for Sprite MK2-MK4 models. Not suitable for Frogeye Sprite models
Why order now
Stocks are limited, and replacement lamp assemblies are rarely the parts you want to be chasing mid-job

Choose Your Sprite Side/Flasher Lamp

If your Sprite’s front lamps are cracked, faded, corroded or missing, now is the time to sort them while stock is available. These side/flasher lamp assemblies restore the front side light and indicator function on Austin Healey Sprite MK2, MK3 and MK4 models.

Order the side you need, or replace both sides if the front end deserves a balanced finish. It usually does, even if your wallet mutters something rude from the glovebox.

Planning a Bank Holiday Sprite Job?

The Spring Bank Holiday weekend is just about here, and front lighting is exactly the kind of small job that can make a Sprite feel instantly tidier.

If your side/flasher lamps are cracked, cloudy, corroded or incomplete, this is a good moment to replace them while the current stock is available. A long weekend is much better spent fitting parts than hunting for them.

used Austin Healey Sprite side and flasher lamp showing aged lens and worn housing

Why Replace the Whole Lamp Assembly?

Old Sprite lamp assemblies tend to suffer from more than one problem at once. A lens may look merely tired, but behind it you can also find corrosion, poor contacts, weak earths and previous repairs of varying optimism.

A complete replacement assembly gives you a cleaner starting point and avoids trying to revive a lamp that has already had several decades to think about behaving itself.

  • Replaces cracked, faded or incomplete lamp units
  • Helps restore dependable side light and indicator operation
  • Improves the look of the front end without changing the character of the car
  • Useful for restoration, repair and road-use preparation

Limited Stock Means It Pays to Be Decisive

Sprite lighting parts are not always available in endless quantities. When a batch sells through, replacement stock can take time to return, and that is rarely helpful when the car is already apart.

If you know your lamps need replacing, order the correct side while stock is on the shelf. Future you, standing in the garage with tools out and tea going cold, will approve.

Replaceable Parts for Sprite Side/Flasher Lamps

The complete lamp assembly is the best choice if your existing unit is cracked, corroded, incomplete or generally past its best. It gives you a cleaner starting point and avoids rebuilding a tired unit piece by piece.

Please note: bulbs are not included with the complete side/flasher lamp assemblies. If your existing bulbs are still working, they may be reused, but replacement bulbs should be ordered separately if needed.

For owners who prefer to repair what they already have, the parts below are the main replaceable elements used in the right-hand and left-hand side/flasher lamp units. Sensible, cautious, and just a little bit “I might be able to save that”. We know the type. We are the type.

Replaceable parts and consumables for Austin Healey Sprite MK2 to MK4 side and flasher lamp assemblies
Part Number Product Name Application Click to Buy
XLTG162 Lens - Clear - Front - Right Hand Replacement clear front lens for the right-hand side/flasher lamp unit Order Now
XLTG163 Lens - Clear - Front - Left Hand Replacement clear front lens for the left-hand side/flasher lamp unit Order Now
XLTG176 Gasket - Lens To Lamp Replacement gasket between the lens and lamp body Order Now
XLTG187 Rim - Side Lamp Replacement side lamp rim for tidying or rebuilding an existing lamp unit Order Now
XLTG204 Amber Shield - Flasher Bulb Amber bulb shield for the flasher bulb inside the lamp unit Order Now
LTG222 Bulb - Flasher Replacement flasher bulb to order separately if you are not reusing the existing working bulb Order Now
LTG220 Bulb - Side - Stop - Tail Replacement side light bulb to order separately if you are not reusing the existing working bulb Order Now

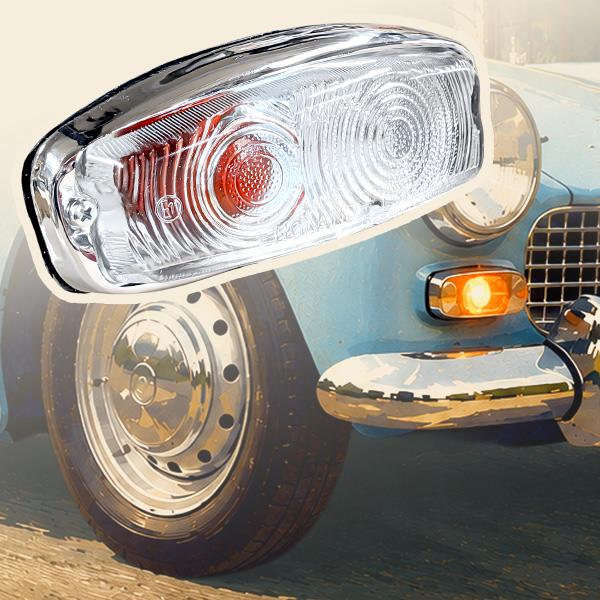

new Austin Healey Sprite MK2 to MK4 side and flasher lamp assembly ready for fitting

Before You Fit Them

Fitting is usually straightforward, but older wiring can turn a quick job into a head-scratcher if you do not check the basics first.

  • Check wiring condition before connecting the new lamp
  • Clean or renew poor earth connections
  • Confirm bulb type before fitting
  • Do not overtighten the lamp fixings
  • Check alignment on cars with repaired or replacement front wings

Do those checks once and you are less likely to spend the evening blaming the new lamp for an old wiring fault. We have all been there. Some of us have even admitted it.

Frequently Asked Questions

Are bulbs included with the complete lamp assemblies?
No. Bulbs are not included with the complete side/flasher lamp assemblies. Existing working bulbs can be reused, or replacement bulbs can be ordered separately if required.
Can these lamps be fitted to cars with repaired or replacement front wings?
Yes, but alignment should be checked carefully where front wings have been repaired, replaced or modified. Minor adjustment may be needed to ensure the lamp sits correctly.
Should I replace both sides at the same time?
You can replace only the damaged side, but fitting both sides can give a cleaner and more even appearance across the front of the car, especially if the existing lamp assemblies are faded or mismatched.
Which side do I need, right-hand or left-hand?
XLTG142 is the right-hand side/flasher lamp. XLTG143 is the left-hand side/flasher lamp. Check the side required before ordering, especially if only one original lamp is being replaced.
Why replace the whole lamp assembly rather than just the lens?
If the original unit is cracked, corroded, incomplete or suffering from poor internal contacts, replacing the full assembly is often more reliable than trying to revive a tired lamp piece by piece.
Will I need to modify the wiring?
No wiring modifications are normally required on standard Sprite MK2-MK4 wiring systems, but it is sensible to check the condition of the loom, earth connections and bulb holder while fitting.
Will these side/flasher lamps fit a Frogeye Sprite?
No. These lamps are for Austin Healey Sprite MK2, MK3 and MK4 models. Frogeye Sprite models use a different lamp design and mounting arrangement.
