Austin-Healey Sprite & MG Midget Carburettors – MK2 to MK4 (SU HS2)

View

Diagram

Filter

Explore Sprite & MG Midget SU HS2 carburettors and parts for MK2–MK4 models, including complete carburettors, jets, needles, float chambers, linkages and gasket sets. Built to specification, these SU HS2 carbs deliver authentic performance and reliability for later Sprite & Midget models.

Need control cables, pedals or return springs? See our Fuel & Engine Controls section.

SU HS2 carburettors are fitted to MK2–MK4 Sprite & Midget models – see our Model Specifications guide.

Sprite

Part No: XFCH3004

Application: MK2-948CC

Carburetters - HS2 - AUC990 - PAIR

£1,092.62 Exc VAT

Ref	Part No	Product Name	Application	Qty Per Vehicle	Items Per Pack	Price Exc VAT	Quantity	Add To Basket	Wish List
1	XFCH3004	Carburetters - HS2 - AUC990 - PAIR	MK2-948CC	1	????	£1,092.62		+	+

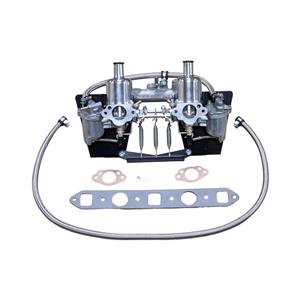

1	XFCH3006	Twin HS2 Carburetter Set Up - complete	MK2-MK4	1	????	£1,442.16		+	+
1	XFCH3008	Carburetters - HS2 - AUD136 - PAIR	MK3-MK4	1	????	£1,092.62		+	+
1	XFCH3010	Carburetters - HS2 - AUD327 - PAIR	MK4	1	????	£1,092.62		+	+
3	XFCH3020	Damper Oil SAE Grade 20 \| USE FCM1004	A/R	A/R	????	Superseded		+	+
4	XFCH3022	Carburetter Rebuild Kit - HS2 - both Carburetters	MK2-MK4	1	????	£136.97		+	+
4	XFCH3023	HS2 Twin Carb Service Kit for Sprite & Midget MK2–4 \| USE FCM4009	MK2-MK4	1	????	Superseded		+	+
5	XFCH3024	HS2 Gasket Set - per Carburetter	MK2-MK4	2	????	£5.08		+	+
6	XFCH3026	Carburetter Jet Adjusting Spanners \| USE TOL102	A/R	A/R	????	Superseded		+	+
8	XFCH3028	Carburetter Jet Needle & Seat Spanner \| USE TOL102A	A/R	A/R	????	Superseded		+	+
10	XFCH3030	Pin Kit - piston lifting	MK2-MK4	2	????	£6.56		+	+
12	XFCH3032	Spring - piston lifting \| USE FCM1020	MK2-MK4	2	????	Superseded		+	+
14	XFCH3034	Circlip - piston lifting \| USE FCM1022	MK2-MK4	2	????	Superseded		+	+
16	XFCH3038	Chamber and Suction Piston assembly	MK2-MK4	2	????	£430.25		+	+
18	XFCH3042	Screw - needle locking \| USE FCM3082	MK2-MK4	2	????	Superseded		+	+
20	XFCH3044	Cap & Damper - plastic cap \| USE XFCH1028	MK2-MK4	2	????	Superseded		+	+
20	XFCH3048	Cap & Damper - brass cap \| USE XFCH1030	MK2-MK4	2	????	Superseded		+	+
22	XFCH3050	Washer - cap - fibre \| USE FCM1038	MK2-MK4	2	????	Superseded		+	+
24	XFCH3052	Spring - piston return - blue \| USE FCM3254	MK2-MK4	2	????	Superseded		+	+
26	XFCH3054	Screw - chamber to body \| USE FCM1044	MK2-MK4	4	????	Superseded		+	+
28	XFCH3056	Jet Assembly - front \| USE FCM4044	MK2-MK4	1	????	Superseded		+	+
28	XFCH3058	Jet Assembly - rear \| USE FCM4046	MK2-MK4	1	????	Superseded		+	+
30	XFCH3060	Jet Bearing Kit \| USE FCM4048	MK2-MK4	2	????	Superseded		+	+
32	XFCH3062	Bearing - jet \| USE FCM4050	MK2-MK4	2	????	Superseded		+	+
34	XFCH3064	Washer - jet housing \| USE FCM4052	MK2-MK4	2	????	Superseded		+	+
36	XFCH3066	Screw - jet locking \| USE FCM4054	MK2-MK4	2	????	Superseded		+	+
38	XFCH3068	Spring - jet locking \| USE FCM4056	MK2-MK4	2	????	Superseded		+	+
40	XFCH3070	Screw - jet adjusting \| USE FCM4058	MK2-MK4	2	????	Superseded		+	+

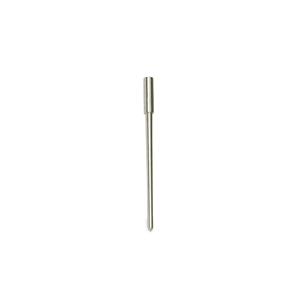

42	XFCH3072	Needle - jet (Rich) - (HS2) V2	MK2 - 948CC	2	????	£19.03		+	+
42	XFCH3074	Needle - jet (Standard) - (HS2) V3	MK2 - 948CC	2	????	£19.03		+	+
42	XFCH3076	Needle - jet (Lean) - (HS2) GX	MK2 - 948CC	2	????	£19.03		+	+
42	XFCH3078	Needle - jet (Rich) - (HS2) M	MK2 - 1098CC	2	????	£19.03		+	+
42	XFCH3080	Needle - jet (Standard) - (HS2) GY	MK2 - 1098CC	2	????	£19.03		+	+
42	XFCH3082	Needle - jet (Lean) - (HS2) GG \| USE XFCH1070	MK2 - 1098CC	2	????	Superseded		+	+
42	XFCH3084	Needle - jet (Rich) - (HS2) H6	MK3-MK4	2	????	£19.03		+	+
42	XFCH3086	Needle - jet (Standard) - (HS2) AN	MK3-MK4	2	????	£19.03		+	+
42	XFCH3088	Needle - jet (Lean) - (HS2) GG \| USE XFCH1070	MK3-MK4	2	????	Superseded		+	+
44	XFCH3090	Float Chamber \| USE FCM4066	MK2-MK3	2	????	Superseded		+	+
44	XFCH3092	Float Chamber	MK4	2	????	£106.23		+	+
46	XFCH3094	Washer - adaptor \| USE FCM4074	MK2-MK4	2	????	Superseded		+	+
48	XFCH3096	Adaptor - front	MK2 - 948CC	1	????	£11.06		+	+
48	XFCH3098	Adaptor - front	1098cc - 1275cc	1	????	£9.25		+	+
48	XFCH3100	Adaptor - rear	MK2 - 948CC	1	????	£11.06		+	+
48	XFCH3102	Adaptor - rear	1098cc - 1275cc	1	????	£9.25		+	+
50	XFCH3104	Washer - float chamber fixing - rubber \| USE FCM4084	MK2-MK4	2	????	Superseded		+	+
52	XFCH3106	Washer - float chamber fixing - plain \| USE FCM4078	MK2-MK4	2	????	Superseded		+	+

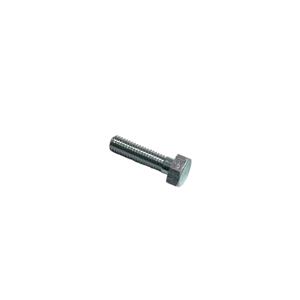

54	XFCH3108	Bolt - float chamber fixing	MK2-MK3	2	????	£5.06		+	+
54	XFCH3110	Bolt - float chamber fixing	MK4	2	????	£12.40		+	+
58	XFCH3114	Float - late HS Carburetter \| USE FCM4088	MK2-MK4	2	????	Superseded		+	+
58	XFCH3116	Float Kit-late HS carbs-adj & anti flood \| USE FCM4090	MK2-MK4	2	????	Superseded		+	+
60	XFCH3118	Float Lid Assembly - front Carburetter	MK2-MK4	1	????	£78.94		+	+
60	XFCH3120	Float Lid Assembly - rear Carburetter	MK2-MK4	1	????	£78.94		+	+
62	XFCH3122	Gasket - float chamber lid \| USE FCM4106	MK2-MK4	2	????	Superseded		+	+
64	XFCH3124	Needle & Seat \| USE XFCH1264	MK2-MK4	2	????	Superseded		+	+
66	XFCH3126	Brass Float Lever - hinged \| USE FCM4100	MK2-948CC	2	????	Superseded		+	+
68	XFCH3128	Pin - Hinged lever \| USE FCM1180	MK2-MK4	2	????	Superseded		+	+
70	XFCH3130	Screw - float lid \| USE FCM1044	MK2-MK4	6	????	Superseded		+	+
72	XFCH3132	Washer - float lid - spring \| USE FAS7252	MK2-MK4	6	????	Superseded		+	+
74	XFCH3134	Plate - baffle - for lid \| USE FCM4098	MK2-MK4	2	????	Superseded		+	+
75	XFCH3135	Piping - carb overflow - (Per Metre) \| USE FCM1240	MK2-MK4	A/R	????	Superseded		+	+
76	XFCH3136	Spindle - throttle	MK2-MK4	2	????	£15.76		+	+

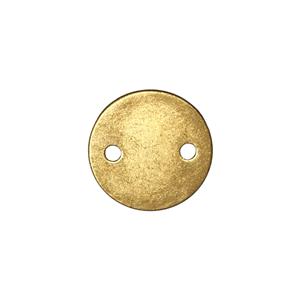

78	XFCH3138	Disc - throttle	MK2-MK4	2	????	£13.50		+	+
80	XFCH3140	Screw - throttle disc \| USE FCM1138	MK2-MK4	4	????	Superseded		+	+
82	XFCH3142	Lever - throttle return - front	MK2-MK4	1	????	£24.32		+	+
82	XFCH3144	Lever - throttle return - rear	MK2-MK4	1	????	£17.90		+	+
84	XFCH3146	Screw - throttle stop \| USE FCM4140	MK2-MK4	4	????	Superseded		+	+
86	XFCH3148	Spring - throttle stop screw \| USE FCM1130	MK2-MK4	4	????	Superseded		+	+
88	XFCH3150	Lever - lost motion - front Carburetter \| USE FCM4124	MK2-MK4	2	????	Superseded		+	+
90	XFCH3152	Nut for Lever - Carburetters \| USE FCM4130	MK2-MK4	2	????	Superseded		+	+
92	XFCH3154	Washer - tab - for nut \| USE FCM4136	MK2-MK4	2	????	Superseded		+	+
94	XFCH3156	Lever - pick up \| USE FCM4144	MK2-MK4	1	????	Superseded		+	+
94	XFCH3158	Lever - pick up \| USE FCM4146	MK2-MK4	1	????	Superseded		+	+
96	XFCH3160	Link - front Carburetter	MK2-MK4	1	????	£12.55		+	+

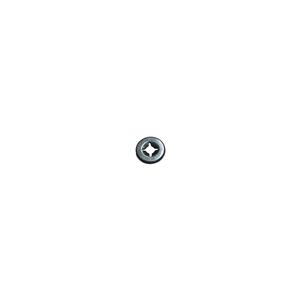

100	XFCH3170	Washer For Link - starlock \| USE FCM1106	MK2-MK4	2	????	Superseded		+	+
102	XFCH3172	Screw - self tapping - for link	MK2-MK4	2	????	£0.36		+	+
104	XFCH3174	Cam Lever - front Carburetter	MK2-MK4	1	????	£8.36		+	+
104	XFCH3178	Cam Lever - rear Carburetter	MK2-MK4	1	????	£8.59		+	+
108	XFCH3182	Spring - pickup lever - front Carburetter \| USE FCM4158	MK2-MK4	1	????	Superseded		+	+
108	XFCH3184	Spring - pickup lever - rear Carburetter \| USE FCM4160	MK2-MK4	1	????	Superseded		+	+
110	XFCH3186	Spring - cam lever - front Carburetter	MK2-MK4	1	????	£0.86		+	+
110	XFCH3188	Spring - cam lever - rear Carburetter	MK2-MK4	1	????	£1.42		+	+
112	XFCH3190	Bolt - pivot for levers	MK2-MK4	2	????	£10.85		+	+
114	XFCH3192	Tube For Pivot Bolt	MK2-MK4	2	????	£1.69		+	+
116	XFCH3194	Distance Tube - outer	MK4	2	????	£2.67		+	+
118	XFCH3196	Washer - pivot bolt - spring	MK2-MK3	2	????	£0.60		+	+
118	XFCH3198	Washer - pivot bolt - spring	MK4	2	????	£0.60		+	+
120	XFCH3200	Washer - distance	MK2-MK4	2	????	£0.50		+	+
122	XFCH3202	Rod - jet connecting	MK2-MK4	1	????	£2.41		+	+
124	XFCH3204	Lever & Pin - throttle & jet connecting - front	MK2-MK4	2	????	£14.42		+	+
124	XFCH3206	Lever & Pin - throttle & jet connecting - rear	MK2-MK4	2	????	£14.42		+	+
126	XFCH3208	Bolt - lever & pin \| USE FCM1142	MK2-MK4	4	????	Superseded		+	+
128	XFCH3210	Washer - lever & pin - plain \| USE FAS7110	MK2-MK4	4	????	Superseded		+	+
130	XFCH3212	Nut - lever & pin \| USE FCM1146	MK2-MK4	4	????	Superseded		+	+
