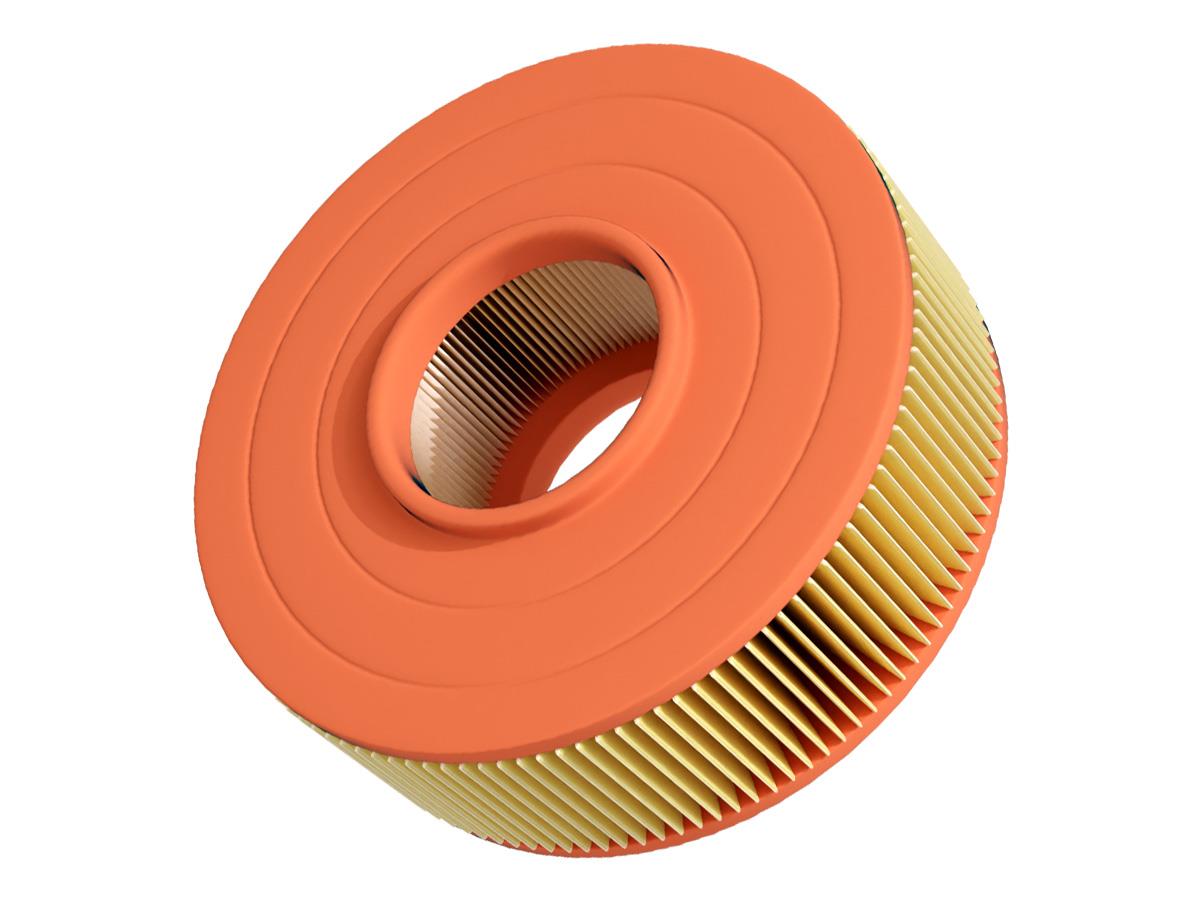

This non-standard air cleaner element is a modern replacement designed to fit directly inside the Burgess-type air filters used on Austin Healey 100 and 100M (BN1–BN2) models. It replaces the original wire-mesh insert with a contemporary filter medium that provides improved filtration performance without altering the housing or appearance of the original assembly.
Designed for:
Compatible with both the front (FCM1478) and rear (FCM1480) Burgess air filters. It is not suitable for later BN4–BJ8 six-cylinder models, which use a different filter system.
Fits directly into the Burgess-type filter housing without modification. Remove the central retaining bolt, open the filter casing, and replace the old element with the new one. Ensure the gasket surface is clean and the plaque alignment is maintained before reassembly.
While the original Burgess filters relied on reusable wire-mesh inserts, this non-standard element offers more effective filtration with modern materials. It allows Healey owners to preserve the authentic appearance of the original filters while improving protection for engines driven regularly or rebuilt to tight tolerances.
Yes. It is designed to fit directly into both the front (FCM1478) and rear (FCM1480) Burgess-type air filter housings used on Healey 100 and 100M models.
No modification is needed. It fits straight into the existing Burgess filter housings using the original retaining bolt and cover plates.
The original wire-mesh insert can be cleaned and reused but offers limited filtration. This replacement uses modern dry-paper media for better dust control and cleaner intake air.
No. Each filter housing requires its own element. Order two for a complete set – one for the front and one for the rear filter.
